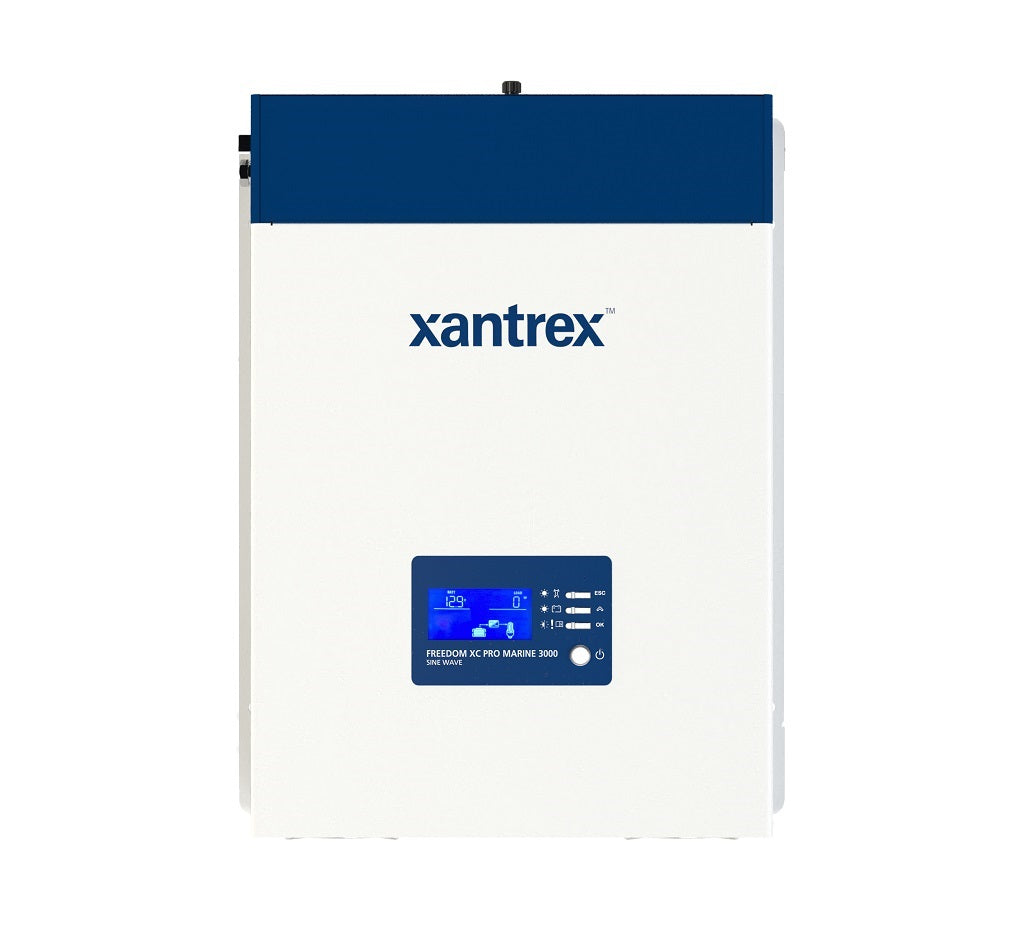

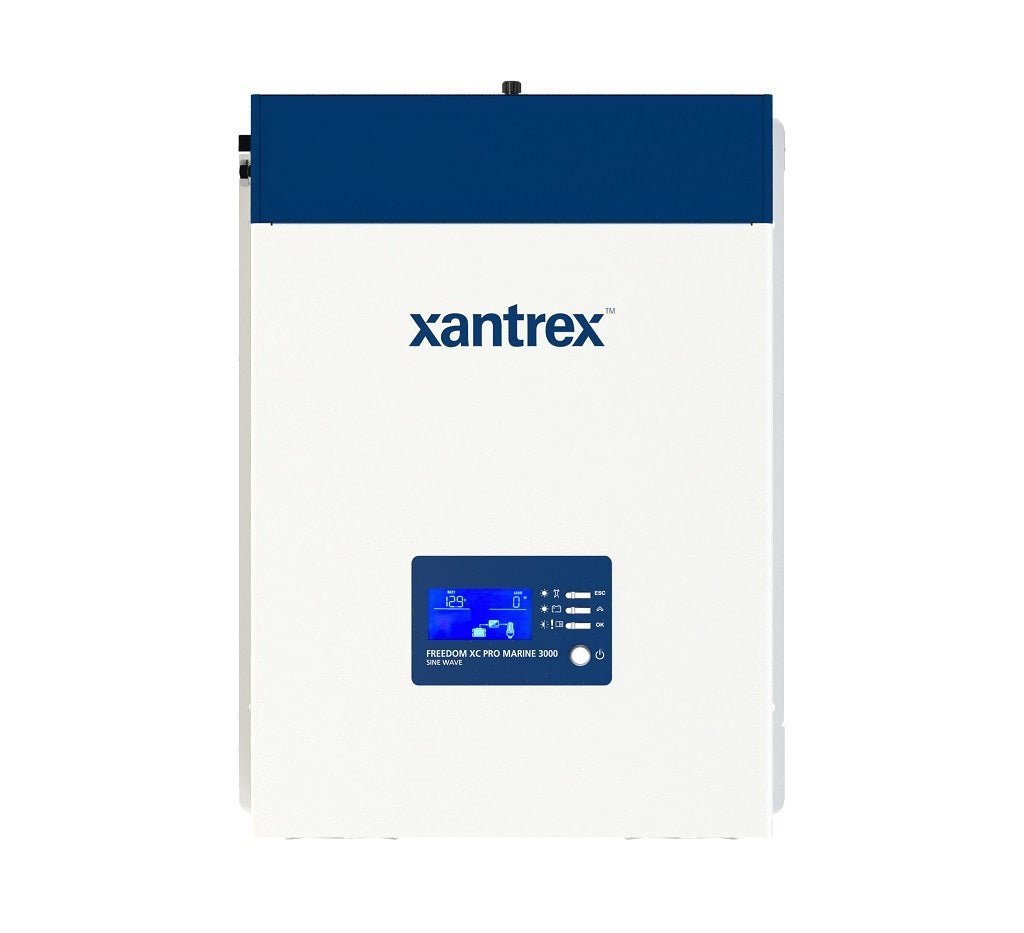

The Xantrex Freedom XC PRO 3000 Marine Inverter Charger turns your 12V DC battery system into a reliable 120V AC power source with clean, true sine wave power. With a continuous 3000 W output and a robust 6000 W surge for up to 5 seconds, it powers motors, compressors, and sensitive electronics with confidence, making it ideal for boats and other mobile installations.
Key advantages at a glance:
-
True Sine Wave Power ensures smooth operation of sensitive electronics and motor loads, reducing nuisance noise and equipment wear.
-
Extended Surge Rating allows starting and running demanding equipment (like A/C or refrigerators) that require a brief boost.
-
Ignition Control enables turning the inverter on/off via a 12 VDC signal to minimize battery drain when the engine is off.
-
Wide Input Range (10.1–18 VDC) keeps the inverter running on high- voltage alternators often found on modern chasses.
-
Programmable AC Under-Voltage Shutdown (85–110 VAC) protects both batteries and shore/generator power when supply is weak.
-
Built-in 50A AC Transfer Relay (3 kW model) automatically transfers the load to shore or generator when available, ensuring seamless power.
-
Power Factor Corrected Multi-Stage Charging uses shore power efficiently, freeing up more usable AC power for loads and reducing breaker trips.
-
Configurable 3-Stage, Temperature-Compensated Battery Charging provides optimal charging for nearly any battery type up to 18V, with features like Battery Equalization and Dead Battery Charging down to 0 V.
-
Power Share intelligently prioritizes AC loads by trimming charge current to keep total input current within breaker limits.
-
Bluetooth Monitoring via the optional Bluetooth remote panel (model #808-0817-02) for easy system monitoring and control.
-
CANbus NMEA 2000 Compatibility enables seamless integration with marine monitoring and control networks for advanced system visibility.
-
Dedicated Charger for Lithium-Ion Batteries supports charging configurations suitable for modern lithium chemistries.
-
Compact, Lightweight Form Factor with durable marine-grade design, built to endure harsh environments and temperatures.
Performance and versatility
The Freedom XC PRO delivers full inverter and charging capability across a wide climate range, operating from -4°F (-20°C) to 104°F (40°C). The built-in transfer switch and robust charging capabilities ensure you stay powered when you need it most, while the CANbus/NMEA 2000 compatibility keeps your vessel’s electrical ecosystem synchronized with other equipment.
Specifications at a glance
- Inverter AC Output: 3000 W continuous; True Sine Wave
- Surge Power: 6000 W for up to 5 seconds
- AC Output Voltage: Configurable to 120, 110, or 108 VAC
- DC Input: 10.1–18.0 VDC (wide range for alternators)
- ACP Transfer: Built-in 50 A transfer relay (3 kW model)
- Charging: PF-corrected multi-stage charging, 3-stage, temperature compensated, up to 18 V
- Battery Support: Flooded and lithium-ion compatible; Battery Equalization; Dead Battery Charging to 0 V
- Control & Monitoring: Bluetooth via optional remote panel; CANbus NMEA 2000
- Operating Temperature: -4°F to 104°F (-20°C to 40°C)
Designed for marine environments and engineered for reliability, the Xantrex Freedom XC PRO 3000 is the versatile, high-performance inverter/charger your boat or mobile installation can rely on. Quiet, efficient, and easy to configure, it keeps essentials running and protects your battery bank—no matter where your voyage takes you.
| ELECTRICAL SPECS - INVERTER |
| AC Output Operating Voltage Options |
120, 110, 108 Vac |
| Continuous Output Power |
Continuous Power 3000 W @40 C True sine wave (TSW) |
| Continuous AC Output Current |
25 A |
| Surge Power |
6000 W (? 5 sec) |
| Frequency (Configurable) |
60 (or 50) Hz |
| Peak Efficiency |
91% |
| Full Load Efficiency |
gretaer than or equal to 84% |
| DC Input Operating voltage range |
10.1 - 18.0 VDC |
| DC Input Max Non-Operating Voltage |
25.2 Vdc |
| DC Nominal Current at Full Load |
304 Adc |
| ELECTRICAL SPECS - BATTERY CHARGER |
| Min Battery Voltage for Charging |
0.0 Vdc |
| Max DC Output Voltage |
18.0 Vdc (custom battery type) |
| Selectable DC Output Current |
User Selectable: 5 - 150 A |
| Full Load Max AC Input Current |
25 Arms |
| Max DC Charge Current (selectable down to 5A) |
150A |
| Operating Input AC Pass-Through Voltage Range |
85-140 Vac |
| Safe Non-Operating Input AC Voltage Range |
Up to 240 Vac RMS |
| Power Factor at Full Charge Rate |
> 98% |
| GENERAL SPECS |
| Operating Temperature Range |
4 to 140 F (-20 to 60 C), with output derated above 104 F (40 °C) |
| Storage Temperature Range |
-40 to 158 F (-40 to 70 C) |
| Operating Humidity Range |
5 to 95% RH, non-condensing |
| Transfer Relay AC Current Rating |
50 A surge, 40 A continous |
| DC Input/Output Nominal Voltage (inverting/ Charging) |
12.0 Vdc |
| L x W x H (without flanges) |
15.4"(390 mm) x 10.8"(275 mm) x 4.9"(125 mm) |
| L x W x H (with flanges) |
16.0"(406 mm) x 12.0"(305 mm) x 4.9"(125 mm) |
