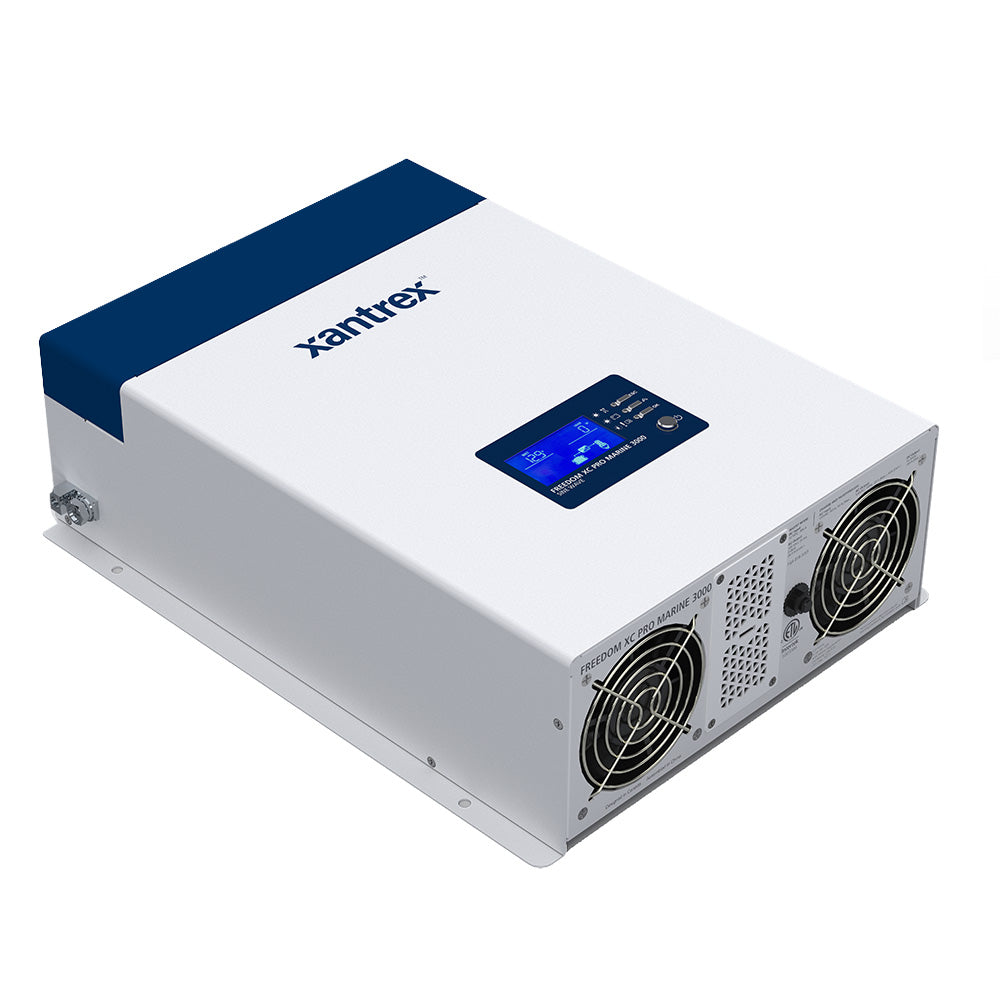

Power your marine adventures with the Xantrex Freedom XC PRO Marine 3000W Inverter/Charger — a compact, lightweight 12V true sine wave inverter with a built-in lithium-ion charger and automatic transfer switch. Built for harsh marine environments, it delivers clean AC power for sensitive electronics and heavy loads, while providing smart charging and seamless monitoring.
Key Features
-
True Sine Wave Power: Clean, stable AC suitable for sensitive electronics, motors, compressors, and appliances.
-
Built-in 150A Charger (3000W model) with Power Factor Corrected Multi-Stage Charging: Efficient charging that uses shore power wisely and frees up more usable AC for devices.
-
Automatic Transfer and Isolation: Built-in 50A AC transfer relay (3KW model) senses external AC power and transfers the load between the inverter and shore power seamlessly.
-
CANbus NMEA 2000 and Micro-C Connector: Seamless integration with marine networks and third‑party monitoring/control systems.
-
Bluetooth Remote Panel Compatible: Configure and monitor system performance with the Bluetooth app on the optional remote panel (#808-0817-02).
-
Extended Surge Rating: Surges to 2X continuous power for 5 seconds, enabling reliable start-up for compressors, A/C, or fridge.
-
Wide DC Input Range: 10–18 VDC to operate on high-voltage alternators common on modern boats.
-
Ignition Control: Turn the inverter on/off with a 12 VDC signal to minimize battery drain when the boat ignition is off.
-
AC Under-Voltage Shutdown: Programmable 85–110 VAC to protect sensitive devices during weak shore power or generator input.
-
Power Sharing: Prioritizes AC loads by reducing the charger current to stay under breaker limits.
-
Battery Charging for Lithium-Ion: Easily configurable charging settings to support almost any lithium-ion battery type up to 18V.
-
Wide Operating Temperature: -4°F to 104°F (-20°C to 40°C) for reliable operation in varied climates.
Technical Specifications
-
Inverter rating: 3000W continuous, 2x surge for 5 seconds (up to 6000W)
- True Sine Wave
-
DC Input: 10–18 VDC
-
AC Output: Inverter with built-in transfer capabilities
-
Charger rating: Up to 150A (3000W model)
-
Battery types: Configurable for lithium-ion and other chemistries up to 18V
-
Connectivity: CANbus NMEA 2000, Micro-C Connector; Bluetooth remote panel option 808-0817-02
-
Temperature compensation: 3-stage charging with temperature compensation
-
Equalization: Battery equalization supported (for flooded batteries)
-
Dead Battery Charging: Charge down to 0V
-
Power share: Reduces charge current to prioritize AC loads
-
Operating temperature: -4°F to 104°F
-
Other: Ignition control via 12V signal; 85–110 VAC under-voltage shutdown
Note: This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
