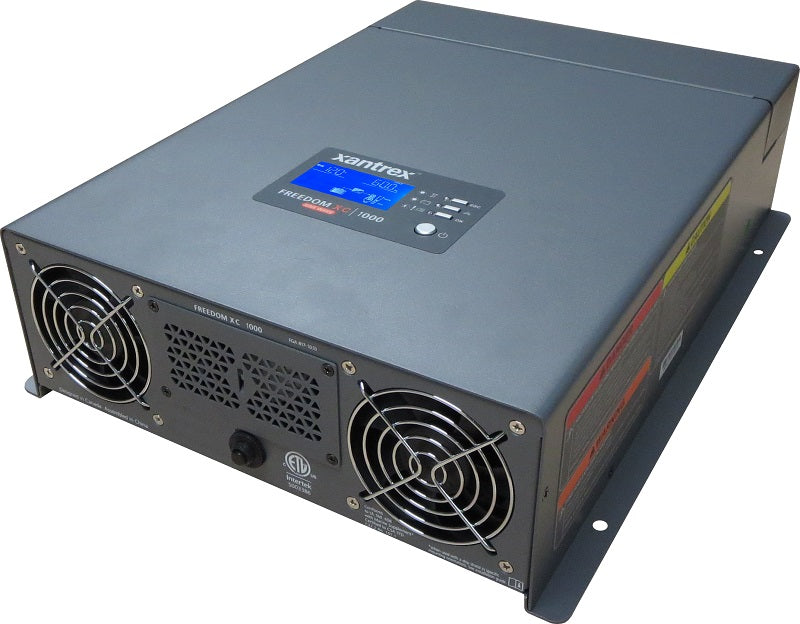

Power your off‑grid adventures with the Xantrex Freedom XC1000 1000W Inverter and 50A Charger. This premium unit blends a true sine wave inverter with a robust multi‑stage charger to deliver clean, reliable AC for appliances, electronics, and motor loads—whether you’re RVing, boating, or living off the grid.
-
True Sine Wave Inverter delivers stable, clean power for sensitive electronics and motor loads.
-
1000W Continuous / 2000W Surge with an extended surge rating, perfect for starting fridge compressors and microwave ovens.
-
50A Power‑Factor‑Corrected Battery Charger with a programmable, 3‑stage, temperature‑compensated charging algorithm for optimal battery health (up to 18V).
-
Battery Care Features including Battery Equalization and Dead Battery Charging Down to 0 Vdc to maximize battery life.
-
Power Share prioritizes AC loads by reducing the charge current, keeping critical devices powered during charging.
-
Automatic Transfer Relay (30A) senses when shore or generator power is available and seamlessly transfers the load between inverter and external source.
-
Ignition Control turns the inverter on/off via a 12VDC signal to minimize battery drain when the vehicle is off.
-
Wide Input Range 10–18V DC ensures reliable operation on high‑voltage alternators found in many vehicle chassis.
-
Quick Installation with a large wiring bay and quick‑connect AC IN/OUT terminals for fast, easy wiring.
-
Rugged, All‑Climate Operation runs from -4°F to 104°F (-20 to 60°C) with derating above 104°F for consistent performance.
-
Efficiency & Reliability with up to 91% peak efficiency and ≥87.3% full‑load efficiency.
-
AC Compatibility supports 120/110/108 VAC, 60 Hz for widespread use with common power systems.
-
Compact, Lightweight Design delivers premium performance in a compact package (dimensions: 14.2" x 10.6" x 3.7").
Designed to handle demanding loads, the Freedom XC’s extended surge rating enables reliable startup of motors and appliances, while its smart charging preserves battery life and minimizes shorepower usage. This inverter/charger is the ideal all‑in‑one solution for reliable, versatile power in vehicles, boats, and off‑grid shelters.
-
What's in the Box: Freedom XC unit, pre‑installed ground lug, and documentation.
| Electrical Specifications - Inverter |
| Operating voltage |
120, 110, 108 VAC |
| Continuous power |
Continuous Power 1000 W @40 C True sine wave |
| Continuous current |
8.4 Amps |
| Surge power |
2000 watts |
| Frequency |
60 Hz |
| Peak efficiency |
91% |
| Full load efficiency |
Greather than or equal to 87.3% |
| Operating voltage range |
85-140 VAC |
| Safe Non-Operating voltage range |
Up to 240VAC |
| General Specifications |
| Operating temperature range |
-4 to 140 F (-20 to 60 C), with output derated above 104 F (40 °C) |
| Storage Temperature Range |
-40 to 158 F (-40 to 70 C) |
| Humidity |
5 to 95% RH, non-condensing |
| Transfer Relay Rating |
30Amp |
| Operating voltage range |
LBCO voltage - 18.0 VDC |
| Maximum Non-Operating Voltage |
24.0 VDC |
| Nominal Voltage (Inverting) |
12 VDC |
| Nominal Current at Full Load |
100ADC |
| Electrical Specifications - Battery Charger |
| Min Battery Voltage for Charging |
0.0 VDC |
| Max Output Voltage |
18.0 VDC (custom battery type) |
| Nominal Output Current |
User selectable: 5 - 50A |
| Dimensions |
14.2"(360mm) x 10.6"(270mm) x 3.7"(95mm) |
