Description

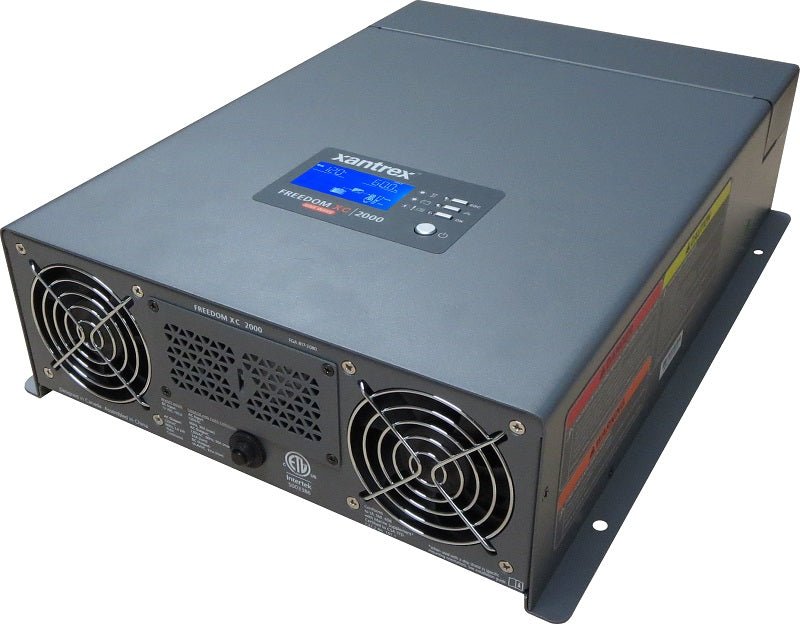

Power when you need it: the Xantrex Freedom XC2000 2000W Inverter with 80A Charger combines a true sine wave inverter and an 80A multi‑stage charger in a compact, lightweight package—ideal for RVs, boats, and off‑grid cabins that demand reliable, clean power.
- Inverter power and waveform: 2000 W continuous power (40°C) with 4000 W surge; true sine wave output at 60 Hz (120/110/108 VAC); supports sensitive electronics and motor loads; surge up to 2× rated power for up to 2 seconds to start demanding loads.
- 80A multi‑stage charger: Power factor corrected charger with three‑stage, temperature‑compensated charging; programmable up to 18 V; battery equalization for flooded batteries; dead battery charging down to 0 V.
- Smart power management: Power share and intelligent load management prioritize AC loads while maintaining a steady input current, reducing the likelihood of shorepower breaker trips.
- Transfer and ignition control: Built‑in 30 A transfer relay automatically switches between inverter and external AC power; ignition control turns the inverter on/off via a 12 VDC signal to minimize battery drain.
- Input range and battery compatibility: Wide input range from 10–18 VDC; supports battery voltages up to 18 V and configurable charging current from 5 to 80 A.
- Environment and installation: Operates in invert or charge mode from −4°F to 104°F (−20 to 60°C) with output derating above 104°F; rugged, compact design with a large wiring bay and side‑by‑side AC IN/OUT terminals for easier installation.
- What’s in the box: Freedom XC unit, pre‑installed ground lug, one set of plastic bushings for large DC cables.
- Efficiency and reliability: Peak efficiency up to 91%; full‑load efficiency at or above 87.3%—delivering reliable power with minimal energy loss.
This XC2000 system delivers reliable power for appliances and electronics while charging from shore power or a generator. The intelligent charging and smart load management help you get more usable AC from your battery bank, extend battery life, and reduce the likelihood of power interruptions during trips or off‑grid use.
| Electrical Specifications - Inverter | |
| Operating voltage | 120, 110, 108 VAC |
| Continuous power | Continuous Power 2000 W @40 C True sine wave |
| Continuous current | 16.7 Amps |
| Surge power | 4000 watts |
| Frequency | 60 Hz |
| Peak efficiency | 91% |
| Full load efficiency | Greather than or equal to 87.3% |
| Operating voltage range | 85-140 VAC |
| Safe Non-Operating voltage range | Up to 240VAC |
| General Specifications | |
| Operating temperature range | -4 to 140 F (-20 to 60 C), with output derated above 104 F (40 °C) |
| Storage Temperature Range | -40 to 158 F (-40 to 70 C) |
| Humidity | 5 to 95% RH, non-condensing |
| Transfer Relay Rating | 30Amp |
| Operating voltage range | LBCO voltage - 18.0 VDC |
| Maximum Non-Operating Voltage | 24.0 VDC |
| Nominal Voltage (Inverting) | 12 VDC |
| Nominal Current at Full Load | 192ADC |
| Electrical Specifications - Battery Charger | |
| Min Battery Voltage for Charging | 0.0 VDC |
| Max Output Voltage | 18.0 VDC (custom battery type) |
| Nominal Output Current | User selectable: 5 - 80A |
| Dimensions | 15.4"(390mm) x 10.8"(275mm) x 4.0"(102mm) |
