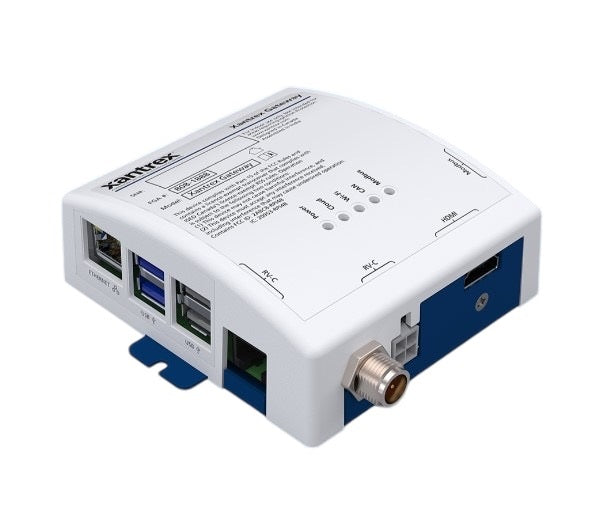

Meet the Xantrex Gateway Communication Device — Model 808-1888 — a powerful all-in-one hub that empowers your entire energy system with real-time insights and effortless control. Replace multiple displays with a single, unified view and stay ahead with proactive alerts that keep performance on track.
-
Real-time app updates and error alerts so you’re always in the loop.
-
Coordinated system control to integrate, monitor, and manage batteries, inverter/charger, and solar controller as one seamless ecosystem.
-
Remote monitoring with WiFi and Bluetooth for convenient access from anywhere.
- Eliminates compatibility issues and complex setups with easy-to-use connectivity and drill-down access.
Xantrex Gateway gives you power at your fingertips to integrate, monitor, and control all essential components into a single, cohesive system for effortless operation.
Why choose the Xantrex Gateway
- All-in-one energy system connectivity with a coordinated view of your entire setup.
- Compact, indoor-friendly design with IP20 protection and easy wall-mount installation.
- Broad input voltage range of 9–58 Vdc to accommodate various power sources.
- Low power draw of 6.5 W (excluding USB outputs) for efficient operation.
- Versatile interfaces including RV-C RJ-45, CAN Micro-C, Modbus RS-485, RJ-45, and HDMI, plus multiple USB ports.
- Wireless connectivity with Bluetooth and WiFi (including WiFi Access Point).
- Compact dimensions: 4.5 x 4.3 x 1.5 inches (114 x 111 x 38 mm) and weight 0.6 lb (300 g).
Specifications
-
Input Power Terminals: 2-Pin 16-24 AWG with flying lead and screw-down terminal block
-
Input Voltage Range (SELV): 9–58 Vdc
-
Power Consumption: 6.5 W excluding USB outputs
-
Interfaces: RV-C RJ-45, 4-Pin Molex style connector, CAN Micro-C, Modbus RS-485, RJ-45, HDMI
-
USB: 2 x USB 2.0, 2 x USB 3.0
-
Wireless: Bluetooth, WiFi, WiFi Access Point
-
Housing / Mounting: ABS Plastic, wall-mount: 2-screw
-
IP Rating / Mounting Location: IP20, NEMA Type 1, Indoor only
-
Operating Temperature: -4 to 122°F (-20 to 50°C)
-
Storage Temperature: -40 to 185°F (-40 to 85°C)
-
Humidity: Less than 95% non-condensing
-
Dimensions (L x W x D): 4.5 x 4.3 x 1.5 in (114 x 111 x 38 mm)
-
Weight: 0.6 lb (300 g)
| Input Power Terminals |
2-Pin 16-24 AWG with flying lead and screw down terminal block |
| Input Voltage Range (SELV) |
9—58 Vdc |
| Power Consumption |
6.5 W excluding USB outputs |
| RV-C |
RJ-45, 4-Pin Molex style connector |
| CAN |
Micro-C Male |
| Modbus RS-485 |
RJ-45 |
| HDMI |
Standard |
| USB |
2 x USB 2.0, 2 x USB 3.0 |
| Wireless |
Bluetooth, WiFi, WiFi Access Point |
| Housing / Mounting System |
ABS Plastic, Wall-mount: 2-screw |
| IP Rating / Mounting Location |
IP 20, NEMA Type 1, Indoor only |
| Temperature |
Operating: -4—122 degrees F (-20—50 degrees C) - Storage: -40—185 degrees F (-40-85 degrees C) |
| Humidity |
Less Than 95 percent, non-condensing |
| Dimensions (L x W x D) |
4.5 x 4.3 x 1.5in (114 x 111 x 38 mm) |
| Weight |
0.6 lb (300 g) |
