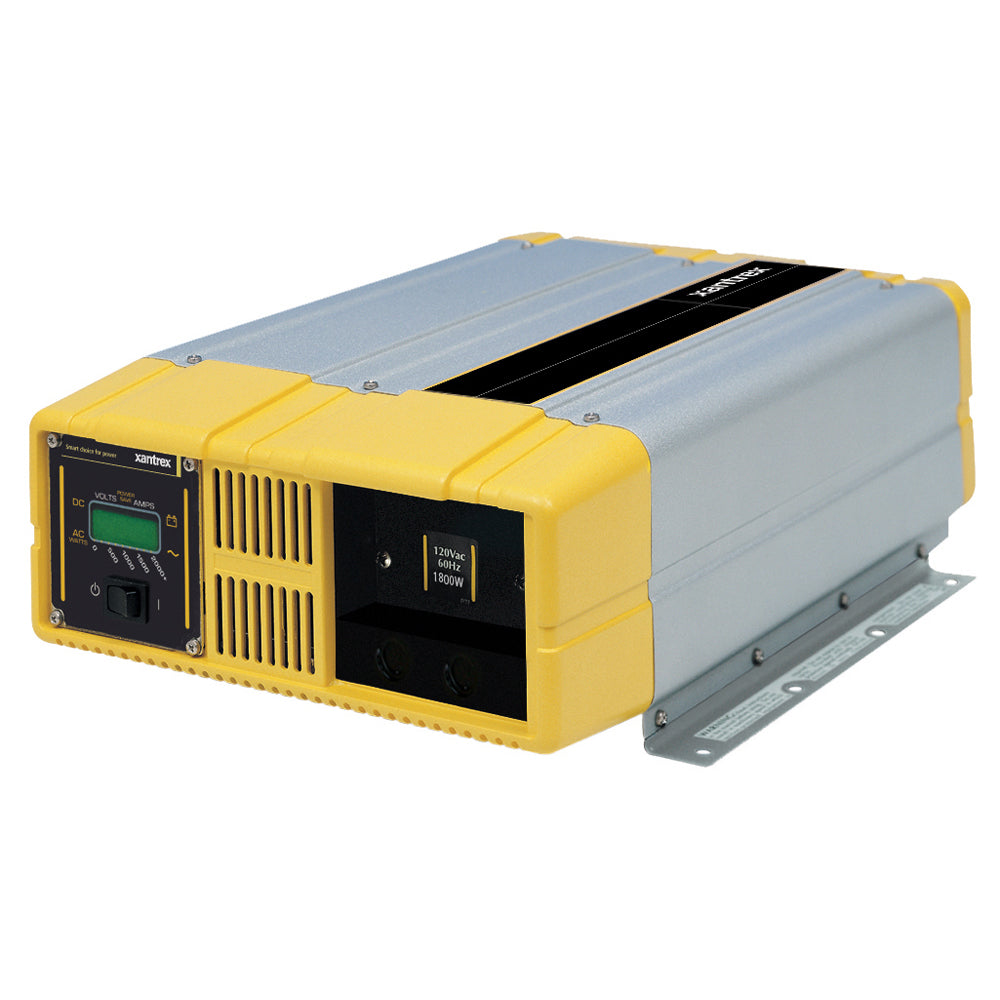

Xantrex PROsine 1800/24/120 Hard Wired Inverter

Xantrex PROsine 1800/24/120 Hard Wired Inverter delivers true sine wave power that mirrors the quality of utility AC, ensuring flawless performance for TVs, audio systems, speed tools, and other sensitive electronics. Built for both recreational and industrial use, it provides clean, reliable power when you need it most.

Designed to deliver 1800 watts of continuous sine wave power with a robust 2900-watt surge, the PROsine 1800 is ideal for electrical systems that already include a quality multistage battery charger. The 120-volt, 60 Hz output is capable of handling heavy-duty loads or multiple smaller loads simultaneously, making it a versatile choice for RVs, boats, work sites, and off-grid setups. A backlit LCD display can be mounted remotely for convenient control and monitoring.

Key Features

• 1800W continuous power with 2900W surge capability for demanding starts and loads
• True sine wave AC output with crystal control for clean, stable power
• Removable LCD display that can be mounted remotely for easy monitoring and control
• Unique 180-degree DC terminals for easy installation in tight spaces
• Powersave mode draws only 1.5W under no load to maximize efficiency
• Comprehensive protection including over-temperature shutdown, automatic overload protection, over/under voltage protection, short circuit protection, and AC backfeed protection
• 24V model available with GFCI outlet or hardwire terminal strip options for permanent installations; optional 15A transfer switch available with hardwire option
• Remote interface kit for mounting the display module away from the inverter
• Ultra-clean power with less than 3% total harmonic distortion

Light and compact thanks to high-frequency switching technology, the PROsine 1800 is easier to install than traditional inverters with similar power ratings, without sacrificing performance or reliability.

Safety and Compliance

Prop 65 Warning: This product can expose you to chemicals including Diisononyl Phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl Phthalate (DIDP), which is known to the State of California to cause reproductive harm. For more information, visit P65Warnings.ca.gov.

Warranty: 2-year manufacturer’s warranty.

Specifications

• Inverter power: 1800W continuous, 2900W surge
• Output: True sine wave, <3% total harmonic distortion
• Input: 24V DC
• Output: 120V AC, 60 Hz
• Display: Backlit LCD (removable, remote mounting available)
• Protection: Over temperature, overload, over/under voltage, short circuit, AC backfeed
• Model variations: 24V with GFCI or hardwire terminal strip; optional 15A transfer switch

Whether you’re powering equipment at a job site, in a recreational vehicle, or in an off-grid setup, the Xantrex PROsine 1800/24/120 Hard Wired Inverter provides reliable, clean power when and where you need it.
