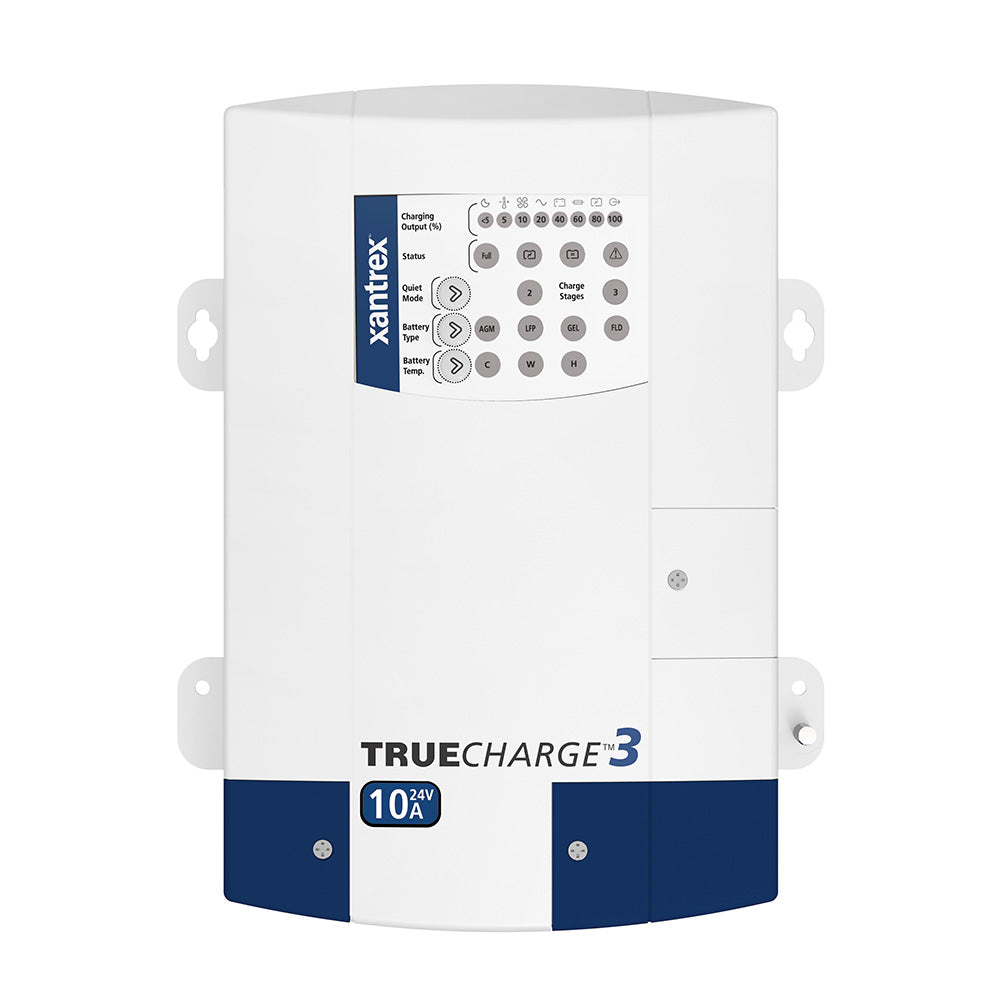

Meet the Xantrex TRUEcharge3 10A 3 Bank Battery Charger – 24V, a compact powerhouse designed for reliability on the road, at sea, or in commercial environments. This three-bank charger delivers efficient, safe charging across a wide range of battery chemistries, while staying small in footprint and big in performance.
-
Three-bank, 10 A nominal output for simultaneous, balanced charging across multiple batteries in 24V systems.
-
Worldwide compatibility accepts 90–265 Vac, 47–63 Hz for easy use with any shore power source, anywhere in the world.
-
Lithium-ion compatible and supports multiple chemistries including Gel, Flooded, AGM, and LiFePO4, giving you flexibility for future battery upgrades.
-
Microprocessor-controlled, multistage charging with distinct Bulk, Absorption, and Float stages to maximize battery life and performance.
-
Power Factor Corrected (PFC) charging reduces shore power draw and minimizes the risk of nuisance trips on crowded power feeds.
-
Remote panel option offers an easy-to-read display when mounted in hard-to-see locations, and parallel stacking (remote panel required) for scalable setups.
-
Drip-proof design with flexible mounting positions, ideal for boats, RVs, and other mobile applications.
-
Quiet mode added for low-noise operation in sensitive environments.
-
Safety and protection includes surge/spike protection on the AC input, reverse-polarity protection, DC over-voltage protection, over-temperature protection, and circuit breaker protection.
-
Simple, reliable regulation with three-stage charging, battery-equalization features, and settings for flooded, gel, AGM, or lithium-ion batteries.
Designed for versatility and longevity, TRUEcharge3 makes international travel and power management effortless. It maintains precise charging voltages, guards against common power issues, and ensures batteries reach a full charge with minimal wear and tear.
Technical specifications
-
Output current (nominal): 10 A
-
Output voltage (nominal, depending on settings): Charge 28.4–31.0 Vdc; Float 26.8–27.6 Vdc; 32 Vdc
-

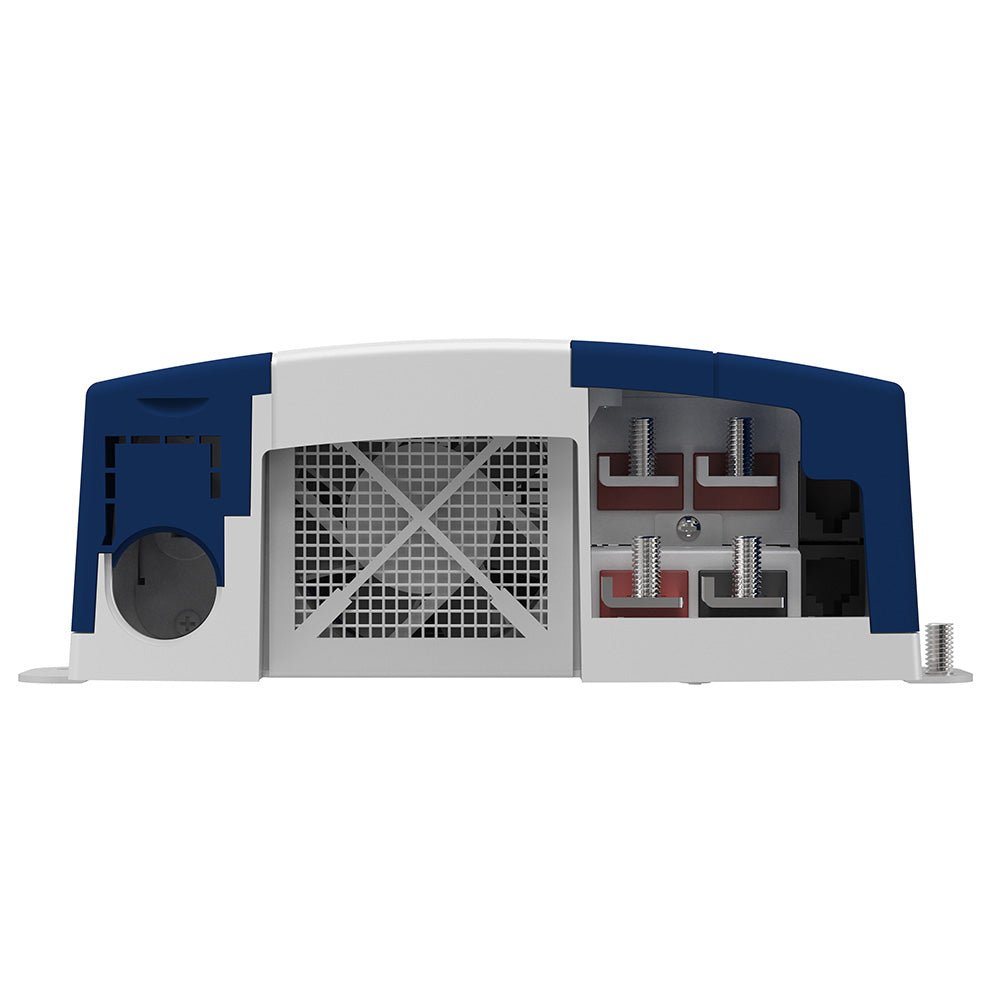

DC output connections: Three positive terminals and one negative terminal
-
AC input voltage: 90–265 Vac; 47–63 Hz (nominal 120 Vac, 230 Vac, 240 Vac)
-
Temperature compensation: Three settings
-
Charger efficiency: >80%
-
Battery types supported: Gel, Flooded, AGM, LiFePO4
-
Minimum recommended battery bank size: 20 Ah
-
Operating temperature: 0–60°C (32–140°F)
-
Storage temperature: -40–80°C (-40–176°F)
-
Battery connection: Three positive terminals and one negative terminal
-
Physical dimensions: 70 x 170 x 250 mm (2.8 x 6.7 x 9.8 in)
-
Weight: 2.2 kg (4.8 lb)
-
Regulatory approvals: CSA 60335-2-29, UL1564, IEC 60335-2-29, IP32 per EN.IEC 60529, FCC Part 15
