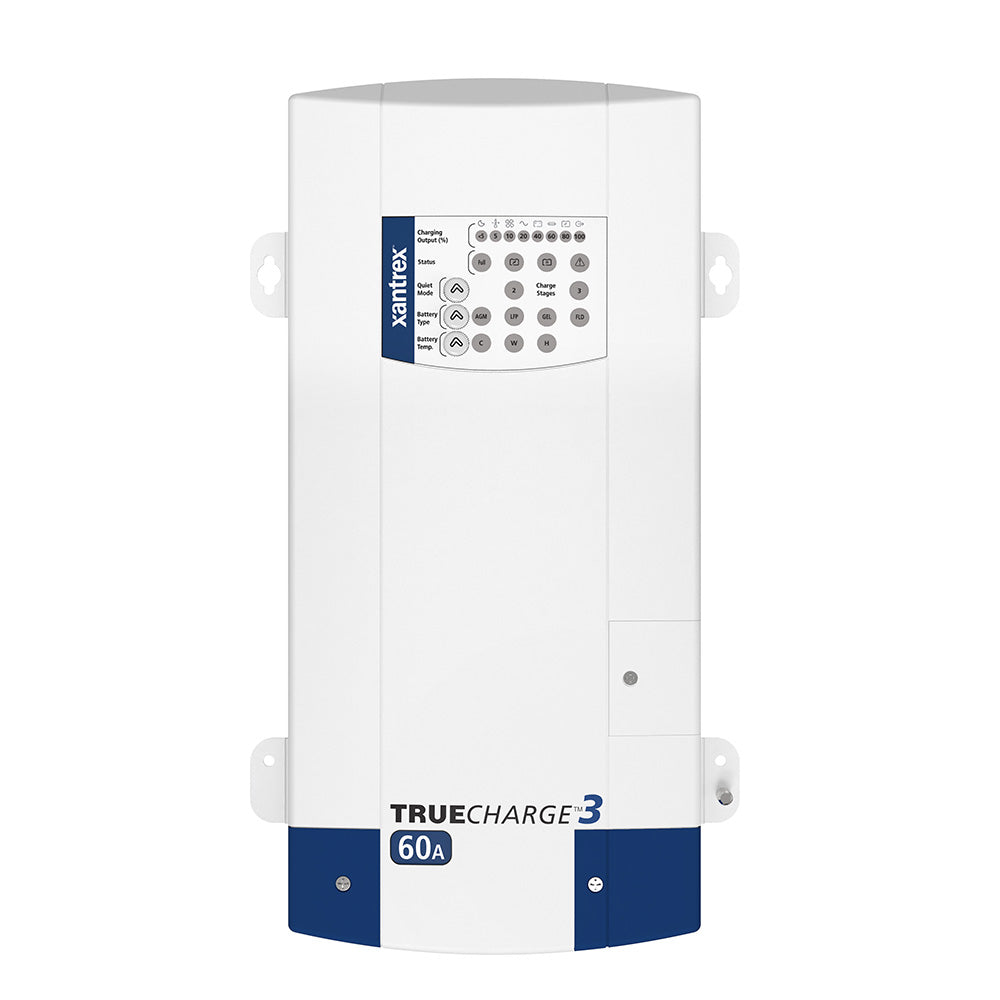

Meet the Xantrex TRUEcharge3 60A 3 Bank Battery Charger - 12V, a compact, high‑performance charger designed to power three 12V battery banks with precision and safety. Its small footprint and ultra‑compact design fit anywhere—from boats and RVs to commercial installations—without sacrificing power or reliability.
Engineered for global use, TRUEcharge3 delivers low electrical interference with a power factor‑corrected multistage charging process. It is lithium‑ion compatible and engineered to meet international safety and regulatory standards, making travel abroad and handling variable power sources easier than ever. An optional remote panel enhances readability, while its drip‑proof design allows mounting in multiple orientations.
-
Three‑bank, 60 A total output to simultaneously charge multiple 12V battery banks.
-
Microprocessor‑controlled multistage charging with three automatic stages for efficient, battery‑friendly charging.
- Battery‑equality features with settings for flooded, gel, AGM, or lithium‑ion (LiFePO4) batteries.
- Parallel stacking capability with an optional remote panel (remote panel required).
- Drip‑proof design for flexible mounting in various positions and an added quiet mode for low‑noise operation.
-
Wide input range of 90–265 VAC, 47–63 Hz, ideal for international travel and unreliable power.
- Built‑in protection against surges and spikes on the AC power line.
Three‑Stage Charging for Battery Health
The TRUEcharge3 uses three automatic stages to optimize charging while minimizing wear: Bulk rapidly restores 70–80% of the battery’s state‑of‑charge, Absorption finishes the remaining 20–30% at a safe, controlled rate, and Float holds the battery at a full, steady charge to prevent overcharging and preserve battery life.
Global Compatibility and Battery Types
Designed for recreational and commercial applications worldwide, this charger accepts a broad input range and supports Gel, Flooded, AGM, and LiFePO4 batteries. Its versatility makes it a reliable choice whether you’re at home, on the road, or offshore.
Protection, Reliability, and Efficiency
TRUEcharge3 includes comprehensive protection: reverse‑polarity protection, surge/spike protection, DC over‑voltage protection, over‑temperature protection, circuit breaker protection, and a robust drip‑proof housing. With an efficiency of >80%, it delivers effective charging with minimal energy waste.
Technical Specifications
-
Output Current (nominal): 60 A
-
Output Voltage (nominal, depending on settings): Charge 14.2–15.5 V; Float 13.4–13.8 V; 16 V DC
-
Output Connections: Three
-
AC Input Voltage: 90–265 Vac; 47–63 Hz (120 Vac, 230 Vac, 240 Vac nominal)
-
Temperature Compensation: Three settings
-
Charger Efficiency: >80%
-
Battery Type: Gel, Flooded, AGM, LiFePO4
-
Minimum Recommended Battery Bank Size: 120 Ah
-
Operating Temperature Range: 0–60°C (32–140°F)
-
Storage Temperature: -40–80°C (-40–176°F)
-
Battery Connection: Three positive terminals and one negative
-
Dimensions (H x W x L): 90 x 170 x 340 mm (3.5 x 6.7 x 13.4 inches)
-
Weight: 4.5 kg (9.9 lb)
Regulatory Approvals
Meets CSA 60335-2-29, CE Marked for the Low Voltage Directive (safety) and EMC compliance, ensuring dependable performance in diverse environments.
