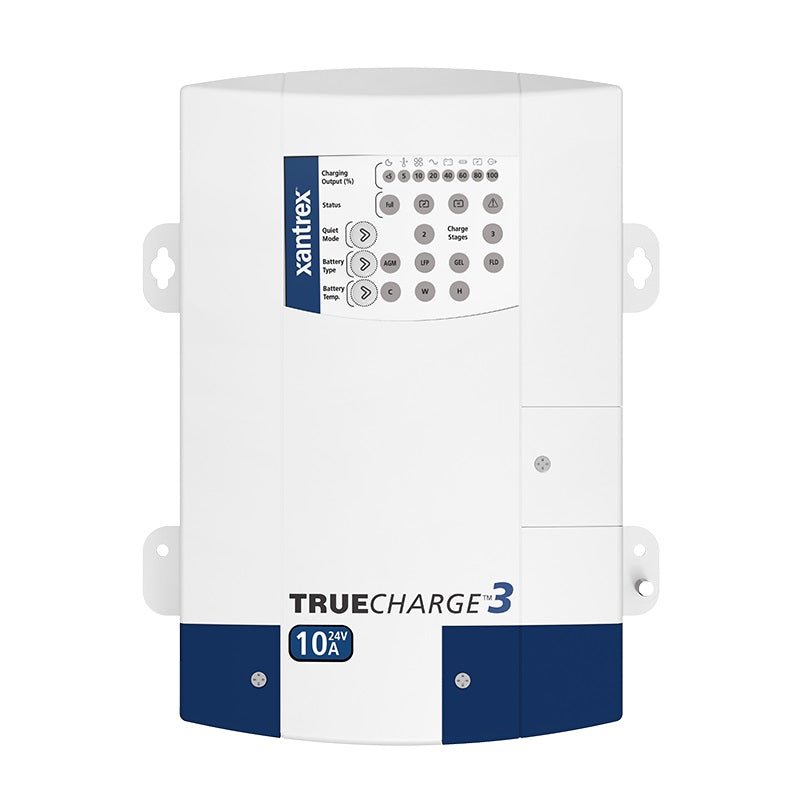

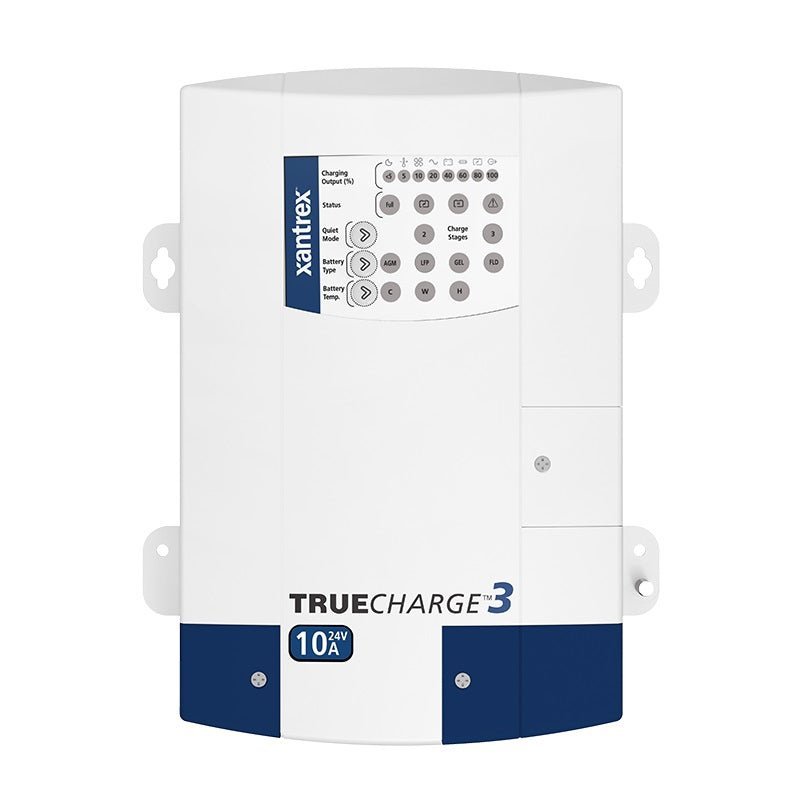

Power your 24V battery system with the Xantrex TRUEcharge3 10 Amp Single Bank 24V Charger. Engineered for both recreational and commercial applications, this compact, drip-proof charger delivers reliable, automatic 3-stage charging and is Lithium-ion battery compatible, expanding your options across chemistries.
Key advantages include low electrical interference and power factor corrected multistage charging, which optimize performance while minimizing energy waste. Its small footprint and versatile design allow mounting in multiple positions, making installation simple even in tight spaces. The TRUEcharge3 also supports parallel stacking up to 2 chargers, enabling scalable charging solutions as your needs grow.
Designed for travel and global use, it accepts 90–265 Vac, 47–63 Hz, so you can confidently power up in remote locations or while abroad. An optional remote panel can augment the easy-to-read display for even more convenient monitoring. The built-in surge and spike protection on the AC power line adds an extra layer of safety for delicate battery systems.
-
Automatic 3-stage charging for efficient, safe charging with Bulk, Absorption/Float, and Equalize stages
-
Lithium-ion battery compatible along with Gel, Flooded, and AGM chemistries
-
Compact, drip-proof design that can be mounted in multiple orientations
-
Worldwide input accepts 90–265 Vac, 47–63 Hz (travel-friendly)
-
Remote panel option for enhanced display visibility
-
Built-in surge protection against power line spikes
-
Parallel stacking capability up to 2 chargers for expanded capacity
Specifications
-
Model: 804-2410-10
-
Output current (nominal): 10 A
-
Charge voltage: 28.4–31.0 Vdc
-
Float voltage: 26.8–27.6 Vdc
-
Equalize voltage: 32 Vdc
-
DC output connections: Three
-
AC input voltage: 90–265 Vac
-
AC input frequency: 47–63 Hz
-
Nominal AC voltages: 120 Vac, 230 Vac, 240 Vac
-
Temperature compensation: Three settings
-
Charger efficiency: Greater than 80%
-
Battery types supported: Gel, Flooded, AGM, Lithium-Ion
-
Minimum recommended battery bank size: 20 Ah
-
Operating temperature: 0–60°C (32–140°F)
-
Weight: 4.8 lb (2.2 kg)
-
Dimensions (L x W x H): 2.8 x 6.7 x 9.8 in (70 x 170 x 250 mm)
-
Warranty: Two years
| Output current (nominal) |
10 A |
| Charge |
28.4 — 31.0 Vdc |
| Float |
26.8 — 27.6 Vdc |
| Equalize |
32 Vdc |
| DC output connections |
Three |
| AC input voltage |
90-265; Vac 47-63 Hz; 120 Vac, 230 Vac, 240 Vac nominal |
| Temperature compensation |
Three settings |
| Charger efficiency |
Greater Than 80 percent |
| Battery type |
Gel, Flooded, AGM, Lithium-Ion |
| Minimum recommended battery bank size |
20 Ah |
| Operating temperature |
0—60 degrees C (32—140 degrees F) |
| Weight |
4.8 lb (2.2 kg) |
| Warranty |
Two year |
| Dimensions |
2.8 x 6.7 x 9.8in (70 x 170 x 250 mm) |
