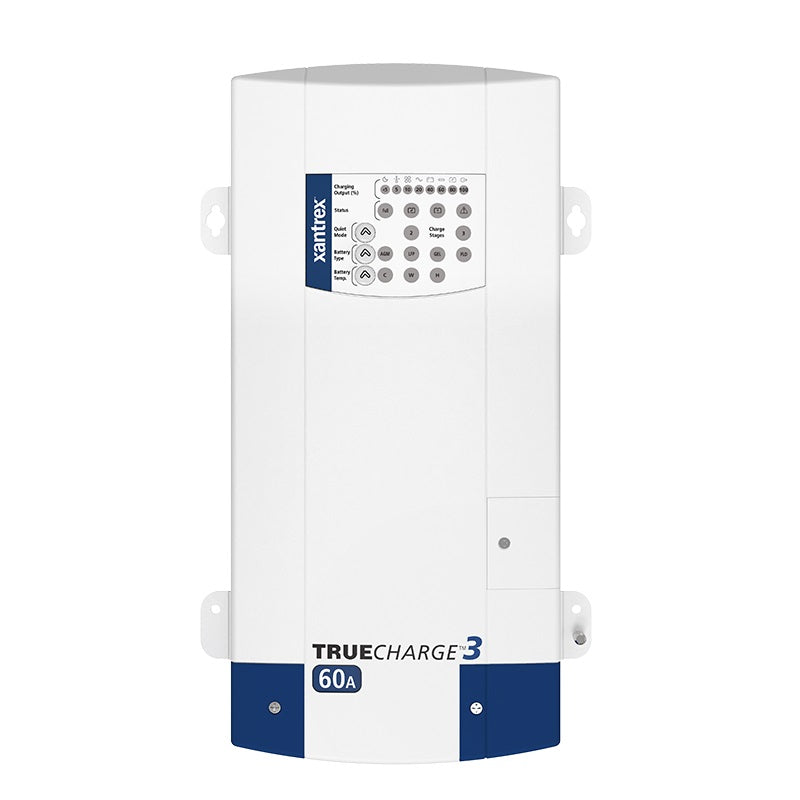

Meet the Xantrex Truecharge3 60 Amp 3 Bank 12V Charger — a compact, Lithium-ion compatible charging solution engineered for recreational and commercial use. This automatic three‑stage charger powers three battery banks with ease, delivering reliable performance in a small footprint.
Key benefits
-
Three banks, 60 A total with independent channels to charge multiple batteries simultaneously without compromise.
-
Lithium-ion compatible and versatile for Gel, Flooded, AGM, and Lithium‑Ion chemistries.
-
Automatic 3-stage charging with efficient, power‑factor corrected operation for fast, safe charging.
-
Global input tolerance accepts 90–265 VAC, 47–63 Hz, making travel and diverse power environments effortless.
-
Parallel up to 2 chargers for scalable charging capacity when needed.
-
Drip‑proof, multi‑position mounting with surge/spike protection for flexible, rugged installation.
-
Optional remote display to augment the built‑in readout for convenient monitoring.
-
Voltage guidance – Charge 14.2–15.5 V, Float 13.4–13.8 V, Equalize 16 V.
-
Temperature compensation with three settings to optimize charging across climates.
-
Safety and durability including built‑in protections, plus a two‑year warranty.
Technical specifications
-
Output current (nominal): 60 A
-
Battery connections: Three positive terminals, One negative terminal
-
AC input: 90–265 VAC; 47–63 Hz (120/230/240 V nominal)
-
Operating temperature: 0–6°C (32–140°F)
-
Storage temperature: -40–80°C (-40–176°F)
-
Efficiency: Greater than 80%
-
Minimum recommended battery bank size: 120 Ah
-
Dimensions: 90 x 170 x 340 mm (3.5 x 6.7 x 13.4 in)
-
Weight: 9.9 lb (4.5 kg)
Designed to meet global safety and regulatory standards, the TRUEcharge3 delivers reliable, low‑interference performance with powerful charging capabilities. Whether you’re powering a yacht, RV, or commercial fleet, this charger keeps your batteries ready and healthy with precise, user‑friendly operation.
| Output current (nominal) |
60 A |
| Charge |
14.2 — 15.5 Vdc |
| Float |
13.4 — 13.8 Vdc |
| Equalize |
16 V |
| DC output connections |
Three |
| AC input voltage |
90-265 Vac; 47-63 Hz; 120 Vac, 230 Vac, 240 Vac nominal |
| Temperature compensation |
Three settings |
| Charger efficiency |
Greater Than 80 percent |
| Battery type |
Gel, Flooded, AGM, Lithium-Ion |
| Minimum recommended battery bank size |
120 Ah |
| Operating temperature |
0—6degrees C (32—140degrees F) |
| Storage temperature |
-40—80degrees C (-40—176degrees F) |
| Battery connection |
Three positive terminals, One negative terminal |
| Weight |
9.9 lb (4.5 kg) |
| Warranty |
Two year |
| Dimensions |
90 x 170 x 340mm (3.5 x 6.7 x 13.4in) |
