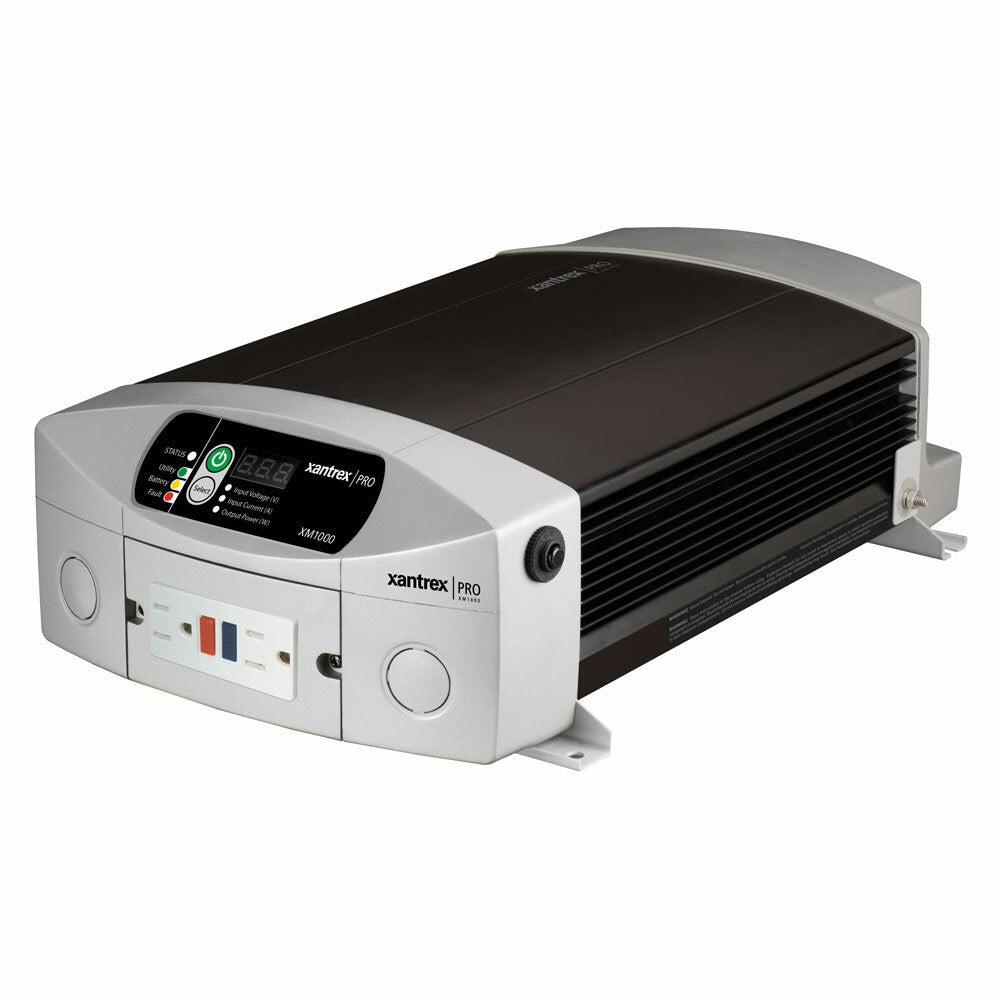

The Xantrex XM1000 Inverter delivers 1000 watts of reliable, clean power when shore power isn’t available. Part of the PRO Series, this modified-sinewave inverter quietly converts your battery power into everyday household AC, making it the perfect companion to your generator, boat, or RV system.
Designed for versatility and ease of use, the XM1000 features a detachable digital remote that clearly displays inverter output, AC source, and battery voltage from a single, convenient location. A built-in transfer switch automatically detects changes in generator or shore power, ensuring power is always available where you need it.
Key benefits include:
-
Detachable remote control for real-time monitoring of power output, AC source, and battery status.
-
Automatic transfer switch seamlessly switches between power sources to keep your loads powered.
-
RV and marine-ready construction with conformal coated electronics for moisture resistance and durable operation in demanding environments.
-
Flexible installation can be mounted horizontally or vertically and hard-wired via a terminal strip or through a GFCI receptacle (included).
-
Safety first protection includes battery over/under-voltage, over-temperature shutdown, automatic overload, short-circuit, and ground fault protection.
-
Two 115V AC receptacles to power TVs, small appliances, and other electronics with ease.
-
Efficient and economical peak efficiency up to 88% with low no-load (< 6 W) and standby (< 2 W) power draw.
-
Reliable power handling 1000 W continuous, 2000 W surge, and a 25 A transfer relay for solid performance with a 35 ms transfer time.
Technical specifications (XM1000)
- Maximum continuous power: 1000 W
- Surge rating: 2000 W
- Output current (continuous): 8.3 A
- Output voltage: 115 V ± 10 V
- Output frequency: 60 Hz ± 1 Hz
- Efficiency: up to 88%
- No load power draw: < 6 W
- Power draw in standby: < 2 W
- Input operating voltage range: 11.0–15.5 VDC
- Transfer relay rating: 25 A
- Transfer time: < 35 ms
- Operating temperature: 0°C–40°C
- AC receptacles: 2
- Recommended DC fuse: 150 A
- Dimensions (H × W × D): 4 × 8.3 × 13" (103 × 211 × 329 mm)
- Weight: 7.5 lb (3.4 kg)
- Part numbers: 806-1010
- Warranty: 1 year
- Regulatory: FCC Class B, UL 458
Whether you’re off the grid, on the road, or at sea, the Xantrex XM1000 Inverter is crafted to deliver dependable power where and when you need it—quietly, safely, and with minimal fuss.
Specifications | Electrical Specifications
| | Models
|
| XM1000
|
| XM1800
| | | Maximum continuous power | | 1000 W | | 1800 W | | | Surge rating | | 2000 W | | 3600 W | | | Output current (continuous) | | 8.3 A | | 15 A | | | Output voltage (at no load) | | 115 V +/- 10 V | | 115 V +/- 10 V | | | Output frequency | | 60 Hz +/- 1 Hz | | 60 Hz +/- 1Hz | | | Output waveform | | Modified sine wave | | Modified sine wave | | | Peak efficiency | | 88% | | 88% | | | No load power draw | | < 6 W | | < 6 W | | | Power draw in standby mode | | < 2 W | | < 2 W | | | Input operating voltage range | | 11.0-15.5 VDC | | 11.0-15.5 VDC | | | Transfer relay rating | | 25 A | | 25 A | | | Transfer time | | <35 milliseconds | | <35 milliseconds | | | | | | | | |
| General Specifications
| | | Operating temperature range | | 0°C - 40°C | | 0°C - 40°C | | | Storage temperature range | | -20°C - 60°C | | -20°C - 60°C | | | AC receptacles | | 2 | | 2 | | | Recommended DC fuse | | 150 A | | 250 A | | | Dimensions (H x W x D) | | 4 x 8.3 x 13" (103 x 211 x 329mm) | | 4 x 8.3 x 15.5" (103 x 211 x 393mm) | | | Weight (lbs) | | 7.5 | | 9.5 | | | Part numbers | | 806-1010 | | 806-1810 | | | Warranty | | 1 year | | 1 year | |
| Regulatory Approval
| | | FCC Class?B?, UL 458 | | | | | | Note: Specifications subject to change without notice.
|
|
|
