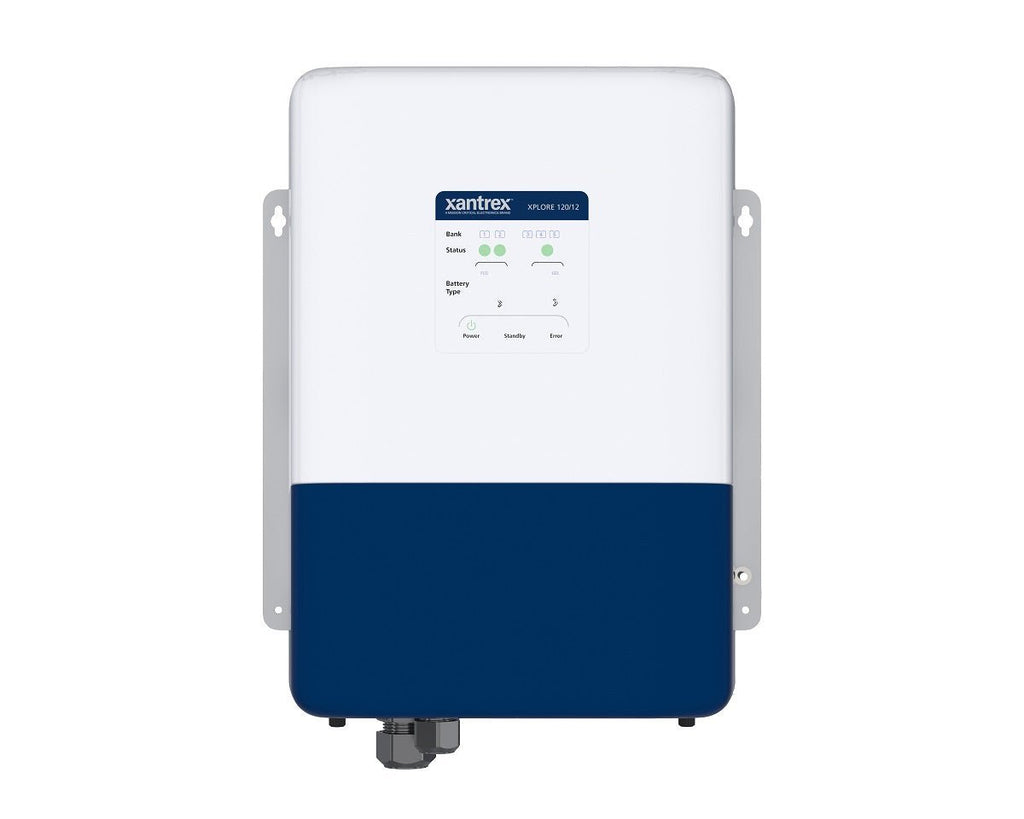

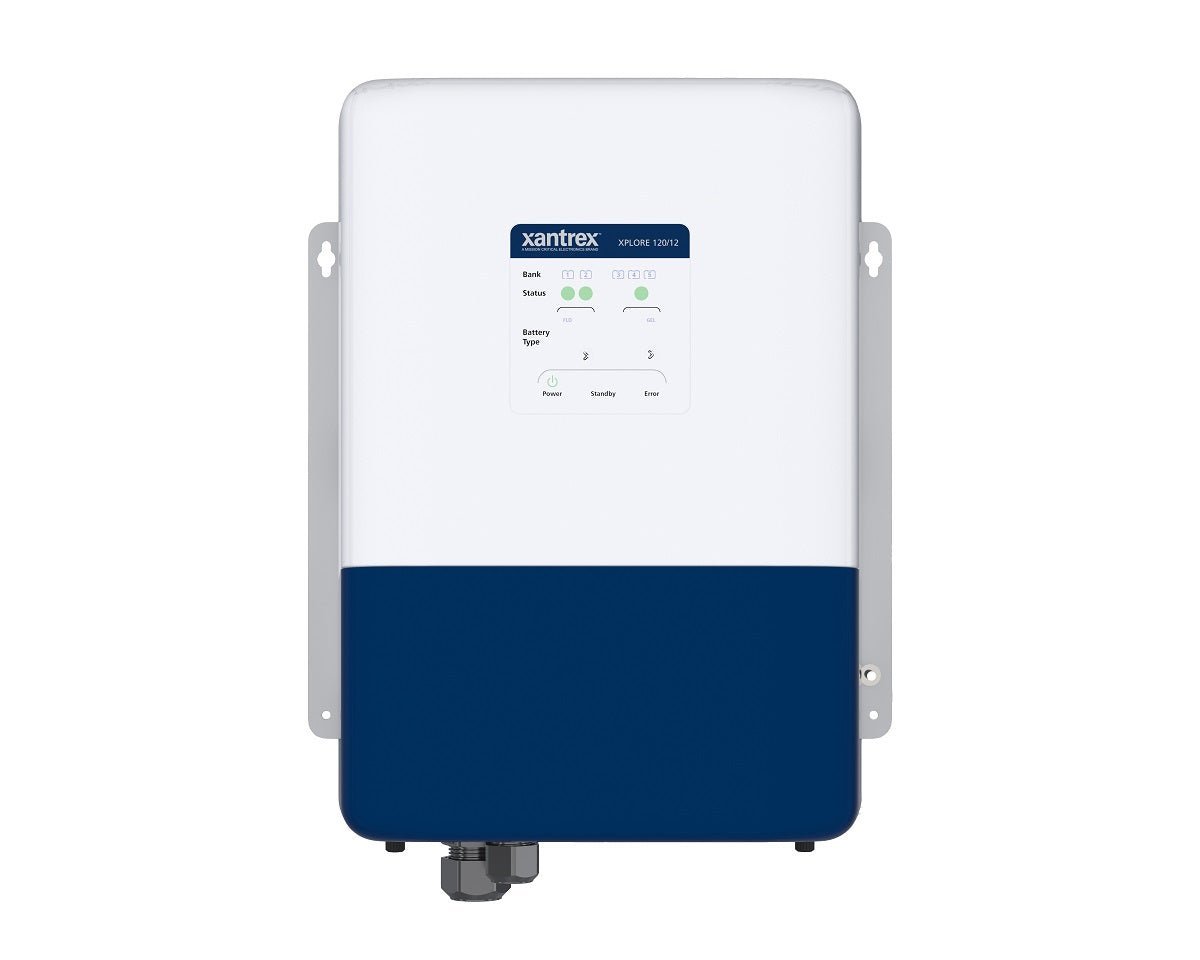

XPLORE 120/12 Battery Charger is a high-output, multi-bank 12V charger designed for demanding marine, RV, and backup power systems. It delivers up to 120 amps across six independent banks from a single compact unit and supports AGM, GEL, FLD, Xantrex LFP, and Custom chemistries.
-
Six independent DC outputs: 120 A total across BAT1-6, allowing you to manage engine, house, and auxiliary batteries from one compact charger.
-
Dual-chemistry charging: Charge two banks with differing chemistries at the same time, including lithium and custom options.
-
Worldwide auto-ranging input: Accepts 80–265 VAC, 45–65 Hz for flexible global use.
-
Power Share: Automatically reduces charging output to prevent nuisance tripping of the AC input breaker.
-
Quiet Mode: Internal fan turns off and output is reduced for low-noise operation when quiet is needed.
-
Storage Mode: Periodically refreshes batteries during long storage to maintain optimal condition.
-
Dead Battery Charging: Can bring a battery from 0 V back to full charge for hard-to-start packs.
-
Protections you can trust: Reverse polarity, over/under-temperature, DC over-voltage, and battery overcharging protections safeguard your system.
-
Rugged IP-32 design: Drip-proof enclosure suitable for marine and harsh environments.
-
Advanced monitoring and connectivity: NMEA 2000 protocol and Xantrex App connectivity via the included BLE module for real-time data and control.
-
Front-panel simplicity: Easy-to-read LED display provides quick configuration and status information.
-
Global battery support and equalization: Supports AGM, FLD, GEL, Xantrex LFP, and Custom batteries; equalization available for FLD.
-
Included accessories: XPLORE Charger unit, Xantrex BLE Module (PN: 808-0889), Owner’s Guide and extra labels.
-
Key physical specs: Dimensions 16.26" x 12.34" x 6.5" (413 x 312 x 165 mm); 6 DC outputs; 12 Vdc nominal; AC input 120/230 Vac nominal.
-
Operating and storage ranges: Operating temperature 4 to 140 F (-20 to 60 C); storage 40 to 176 F (-40 to 80 C); humidity 5–95% RH, non-condensing.
-
Ingress Protection: IP-32 rated enclosure for marine and harsh environments.
With six independent banks and broad battery chemistry support, XPLORE 120/12 consolidates battery management for boats, RVs, and off-grid systems. Global compatibility, flexible charging modes, and modern connectivity provide clear visibility and control from the front panel or your mobile device, helping keep batteries ready when you need them and safeguarding your investment with robust protections.
| ELECTRICAL SPECIFICATIONS |
| Max Total BAT1-6 DC Output Current |
120A |
| Max Total BAT1-2 DC Output |
Current 5 to 120A (selectable) |
| Max Total BAT3-6 DC Output |
Current 5 to 40A (selectable) |
| DC Output Voltage |
12Vdc (nominal) |
| DC Output Connections |
6 |
| AC Input Voltage (Auto Ranging) |
120Vac / 230Vac (nominal), 80 to 265 Vac |
| Power Factor at Full Charge Rate |
> 98% |
| Charging Modes |
3-Stage, 2-Stage, Constant Voltage |
| Supported Battery Types |
AGM, FLD, GEL, Xantrex LFP, Custom |
| Equalization (FLD Battery Only) |
Yes |
| GENERAL SPECIFICATIONS |
| Operating Temperature |
4 to 140 F (-20 to 60 C), with output derated above 122 F (50°C) |
| Storage Temperature |
40 to 176 F (-40 to 80 C) |
| Operating Humidity |
5 to 95% RH, non-condensing |
| AC Input Terminal Connection |
3-position tool-free spring clamp terminal |
| DC Output Terminal Connection |
BAT1-2: Two M6 stud terminals |
| L x W x H Charger |
16.26in (413mm) x 12.34in (312mm) x 6.5in (165mm) |
| Ingress Protection (IP) Rating Charger: |
IP-32 (vertical) |
| REGULATORY APPROVALS |
| Safety |
ETL listed to CSA C22.2 No. 107.2, conforms to UL Std. UL1236 (with Marine Supplement) |
| EMC |
47 CFR (FCC) Part 15B, Class B and CAN ICES-3(B) / NMB-3(B) |
| Ignition Protection |
SAE J1171, ABYC C-1500 |
