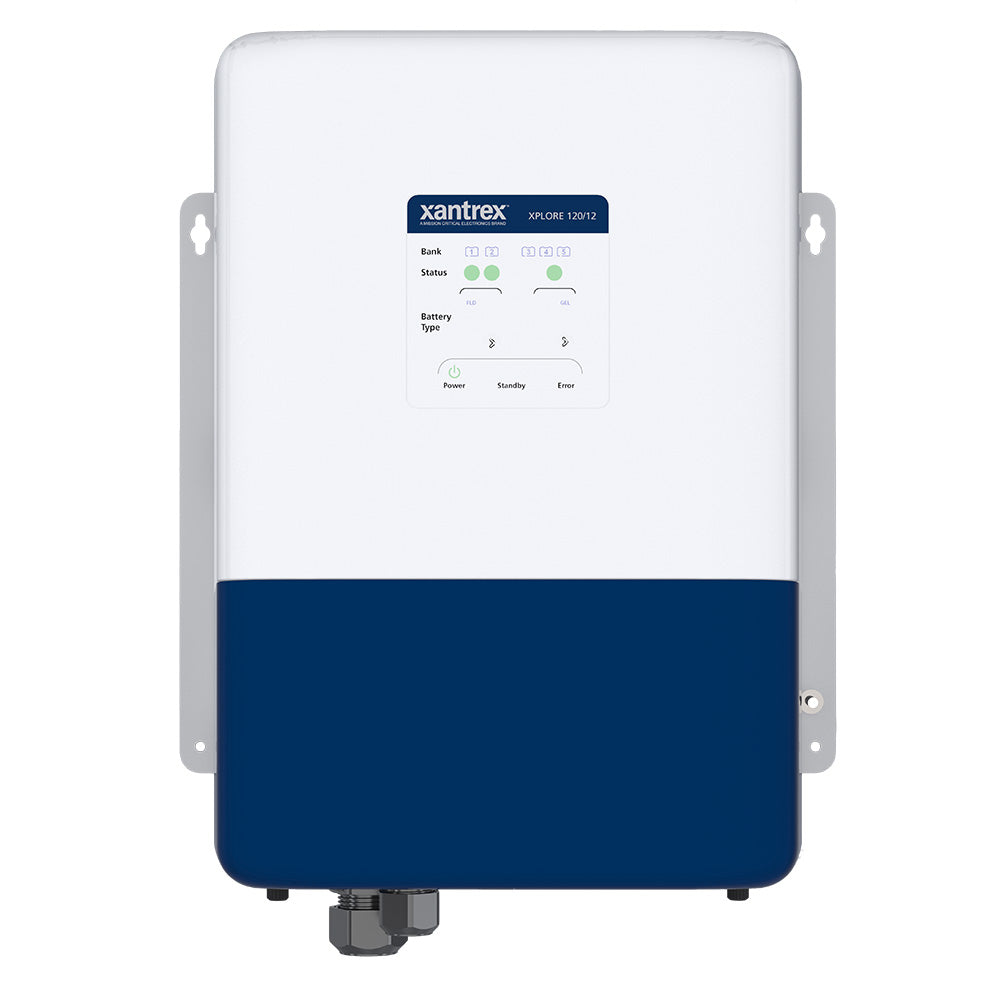

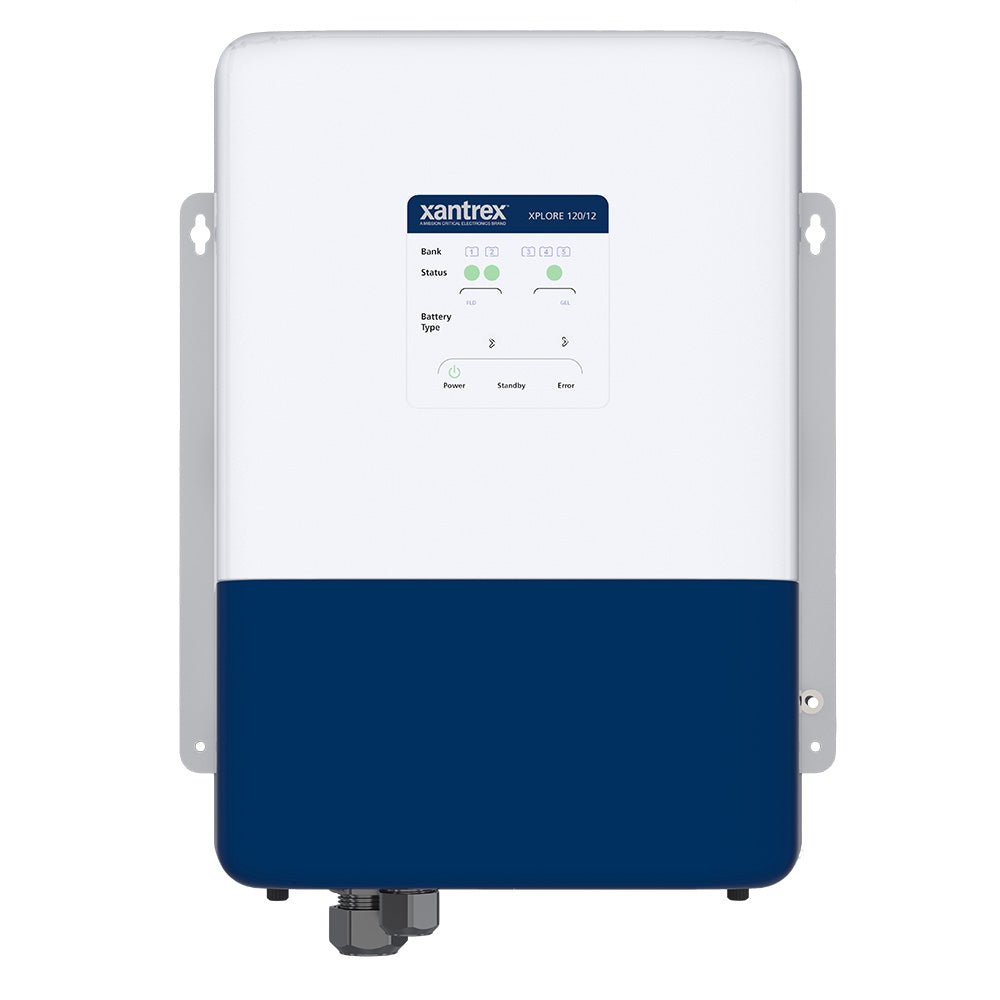

Meet the XPLORE 120/12 Battery Charger from Xantrex—the largest, most powerful 12V charger on the market. Delivering 120 amps of output across up to six banks with universal auto-ranging input, XPLORE enables ultra-fast, reliable worldwide charging for boats, RVs, and off-grid systems.
Designed to simplify installation and maximize flexibility, it can charge two battery banks with differing chemistries simultaneously. This eliminates the need for multiple single-chemistry chargers and lowers wiring costs for your house bank and engine bank.
Monitor and manage your charging with an easy-to-read front-panel LED display, or go deeper with NMEA 2000 connectivity and the Xantrex app via the BLE module for remote configuration and status checks.
Key Features
-
Six Battery Banks and Dual-Chemistry Charging: Supports Xantrex Lithium and Custom Battery Charging to handle diverse battery setups.
-
Connectivity: NMEA 2000 networking plus Xantrex App access via BLE for advanced monitoring and control.
-
Auto-Ranging Universal Input: 80-265 VAC, 45-65 Hz operation for worldwide compatibility.
-
Power Share: Automatically reduces charging output to prevent nuisance tripping of the AC input breaker.
-
Quiet Mode: When enabled, the internal fan turns off and charging output is reduced for quiet operation.
-
Storage Mode: Refreshes batteries automatically after periods of non-use to maintain optimal condition.
-
Dead Battery Charging: Capable of bringing a battery from 0V back to full charge.
- Reverse polarity protection, drip-proof design, and protections against over/under-temperature, DC over-voltage, and battery overcharging.
Engineered by Xantrex, the XPLORE 120/12 is engineered to deliver robust, safe, and efficient charging for demanding marine, RV, and industrial applications. Model: 819-0120-12.
