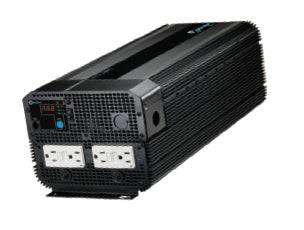

Powerful, portable AC power for on‑the‑go lifestyles, the Xantrex XPower 5000 12V Inverter delivers up to 5000 watts of continuous power from a standard 12‑volt battery. Perfect for trucks, RVs and boats, this inverter turns your battery bank into a reliable source for home appliances, electronics, tools, and more.
Designed for easy installation and operation, the XPower 5000 combines high surge capacity with efficient power conversion and multiple safety features to protect both your equipment and your battery.
-
High power with strong surge capability: 5000‑watt continuous power with up to 10000‑watt surge to start demanding loads
-
Four GFCI outlets on the 5000W model for multiple loads; each receptacle includes a 20‑amp breaker
-
UL458 compliant design for safety and reliability
-
High efficiency: up to 90% efficiency, converting virtually all battery power to usable AC
-
Remote on/off included for convenient control from the cab or work site
-
Mounting and connections: mounting brackets and heavy‑duty stud connectors for a secure install
-
Protective features: overload and over‑temperature shutdown, over‑voltage protection (15.0 VDC), low‑voltage alarm (11.0 VDC), and low‑voltage cut‑out (10.5 VDC)
-
Flexible input/output: 12V DC input, 115V AC output, 60 Hz, 115VAC ±5%, modified sine wave; input range 10.5–15.5 VDC
-
Compact, rugged design: Dimensions 6.25" x 8" x 19.5" and weight 24.1 lbs for the 5000W model
-
Ideal for a range of applications: powers household appliances (microwaves, bread makers, small refrigerators, vacuum cleaners), handheld power tools, entertainment electronics, and office equipment
Available in multiple power levels (1000, 1500, 3000, and 5000 watts) to match your load needs, each model is built for rugged use in vehicles, boats, and mobile work sites. With its easy installation, robust protection features, and reliable performance, the XPower 5000 gives you dependable AC power wherever your battery takes you.
| Electrical Specifications | Inverter 1000 | Inverter 1500 | Inverter 3000 | Inverter 5000 |
| Surge capacity (peak) | 2000 watts | 3000 watts | 5000 watts | 10000 watts |
| Max. continuous power | 1000 watts | 1500 watts | 3000 watts | 5000 watts |
| AC output voltage | 115VAC +/- 5% | 115VAC +/- 5% | 115VAC +/- 5% | 115VAC +/- 5% |
| AC output Frequency | 60Hz +/- 1Hz | 60Hz +/- 1Hz | 60Hz +/- 1Hz | 60Hz +/- 1Hz |
| AC output waveform | Modified sine wave | Modified sine wave | Modified sine wave | Modified sine wave |
| Optimum efficiency | 90% | 90% | 90% | 90% |
| No load current drive | < 0.3 A DC | < 0.3 A DC | < 0.6 A DC | < 0.6 A DC |
| Input voltage range | 10.5 - 15.5 VDC | 10.5 - 15.5 VDC | 10.5 - 15.5 VDC | 10.5 - 15.5 VDC |
| General Specifications |
| Operating temperature range | 32°F − 104°F / 0°C − 40 °C
|
| AC receptacles | 2 | 2 | 2 | 4 |
| Dimensions(HxWxL) | 2.8 x 5.9 x 12.3" | 3 x 5.9 x 15" | 4.3 x 9.5 x 18.5" | 6.25 x 8 x 19.5" |
| Weight | 4.4Lbs | 5.9Lbs | 12.9lbs | 24.1 Lbs |
| Warranty | 1 year | 1 year | 1 year | 1 year |
| Part Number | 813-1000-UL | 813-1500-UL | 813-3000-UL | 813-5000 |
